Brake Duct

Ecoosi flexible ducting hose - High Temperature Black Silicone Brake Air Duct Hose is a high temperature duct hose suited for a variety of applications such as hot air and fumes.
  • ECOOSI
  • 2Ply Silicone coated glass fabric
  • Bronze plated steel wire
  • Suited for high temperature air handling applications
  • Ideal for brake cooling ducts
  • Non-kinking
  • Narrow pitch allows for tight bending radius while maintaining a smooth air flow
  • Not recommended for continuous flexing
  • Extremely flexible and light weight
  • Wear vulcanized wall
  • –70℃ to +310℃
  • 4 meters
  • Aircraft, Automotive, Brake Ducting, Heater Hose, Dry Cleaning, Dryer Hose, Exhaust Systems, Heater, Glass Drying, High Temperature Applications, Plastics Industry, Transmission Cooling, Vehicle Exhaust Systems

Brake Cooling Duct Hose

If you need to add a brake duct hose to your track or race car, Ecoosi flexible silicone ducting hose high temp brake duct hose is ideal for brake cooling, this silicone flexible ducting hose direct air from front-mounted air ducts to spindle ducts for brake cooling. Ecoosi double-ply silicone air ducting hoses are extremely flexible and pliable, but also feature a spring steel wire support to help prevent hose collapse during use. Also used for moving air in the interior (defrost) or to remote coolers (diff cooler).

Ecoosi high temp brake duct hose is flexible, features a non-kink design, and directs air from the front ducts to the spindle ducts. Our flexible silicone ducting hose could handle a working temperature range to 310℃, this silicone air ducting hose is made from a double-ply silicone-coated fiberglass hose with a spring steel inner and external fiberglass supports, it features a smoothed inner wall for unrestricted airflow.

This flex brake cooling silicone air ducting hose consists of double-layer silicone coated fiberglass reinforced with a spring steel wire helix & external filament fiberglass cord. The silicone brake duct hose allows the high-temperature duct to be suited for high temp air handling applications that are ideal for brake cooling ducts. The Ecoosi's high-temperature silicone brake air ducting hose is also a flexible air duct hose that has a narrow pitch for flexible venting. This double-layer silicone duct hose pipe allows the hose to offer a tight bending radius that is non-kinking while maintaining a smooth airflow. While the flexible silicone ventilation hose allows for flexible venting, it is not recommended for continuous flexing.

Ecoosi's high-temperature silicone brake air ducting hose comes in a standard length of 4 meters and is available in red, black, blue, green color. This double-layer silicone brake duct hose is available in a wide range of internal diameter sizes from 19 mm to 305 mm.

Please click the Video Link to watch the details of our silicone brake cooling 2 Ply air duct hose.

Please click contact us to get our free samples.

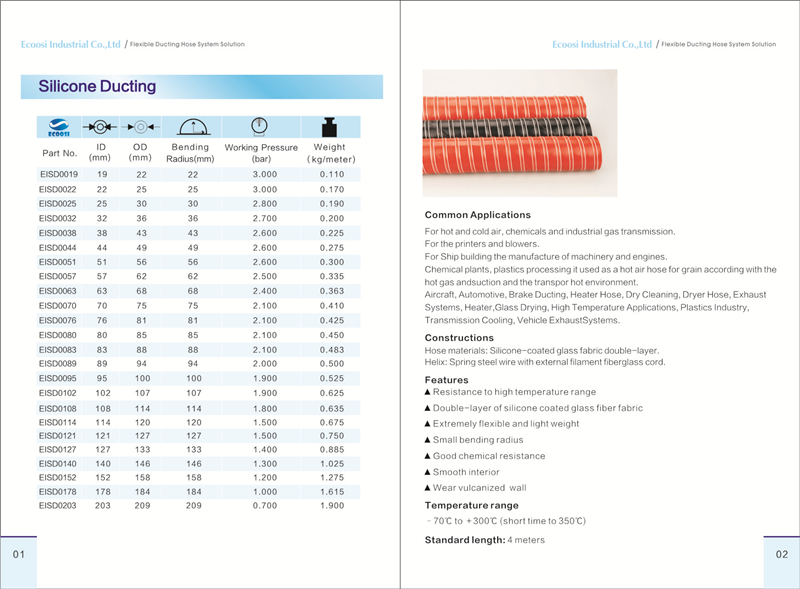

Datasheet

Brake Cooling Duct Hose.jpg
