Name:Brake Ducting
Hose materials:Silicone-coated glass fabric double-layer
Helix:Spring steel wire
Features:Suited for high temperature air handling applications
Features:Ideal for plastic processing applications
Features:Narrow pitch allows for tight bending radius while maintaining a smooth air flow
Features:Not recommended for continuous flexing
Features:Extremely flexible and light weight
Features:Wear vulcanized wall
Temperature range:–70℃ to +310℃
Standard length:4 meters
Applications:Aircraft, Automotive, Brake Ducting, Heater Hose, Dry Cleaning, Dryer Hose, Exhaust Systems, Heater, Glass Drying, High Temperature Applications, Plastics Industry, Transmission Cooling, Vehicle Exhaust Systems

Product Description

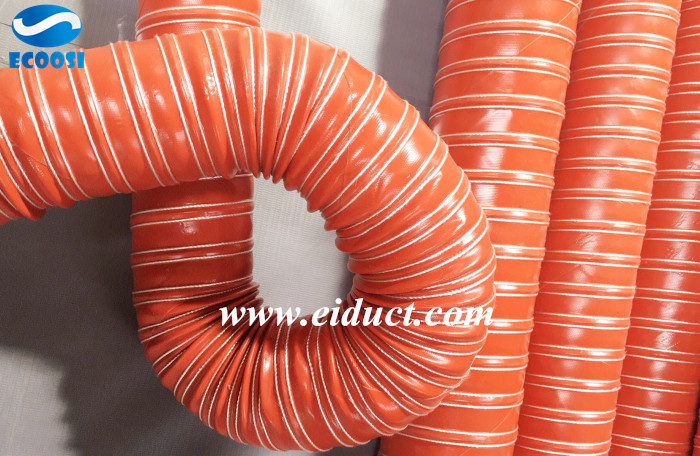

If you need to add brake ducting hose to your track or race car, Ecoosi flexible silicone air ducting hose high temp brake ducting hose is ideal for brake cooling, this silicone flexible air ducting hose direct air from front mounted air ducts to spindle ducts for brake cooling. Ecoosi double ply silicone air ducting hose is extremely flexible and pliable, but also feature a spring steel wire support to help prevent hose collapse during use. Also used for moving air in the interior (defrost) or to remote coolers (diff cooler).

Ecoosi high temp brake ducting hose is flexible, features a non-kink design, and directs air from the front ducts to the spindle ducts. Our flexible silicone air ducting hose could handle working temperature range to 310℃, this silicone flex air ducting hose is made from double-ply silicone-coated fiberglass hose with a spring steel inner and external fiberglass supports, it is features a smoothed inner wall for unrestricted air flow.

This silicone brake ducting hose allows the high temperature duct to be suited for high temp air handling applications that are ideal for brake cooling ducts. The Ecoosi's high temperature silicone brake air ducting hose is also a flexible air duct hose that has a narrow pitch for flexible venting. This double layer silicone duct hose pipe allows the hose to offer a tight bending radius that is non-kinking while maintaining a smooth airflow. While the flexible silicone ventilation hose allows for flexible venting, it is not recommended for continuous flexing.

Ecoosi's high temperature silicone brake air ducting hose comes in a standard length of 4 meters and is available for red, black, blue, green color. This double layer silicone brake duct hose is available in a wide range of internal diameter sizes from 19 mm to 305 mm.

Please click the video link to watch the details of our high temp silicone brake air ducting hose.

Please click the contact us to get our free samples.
